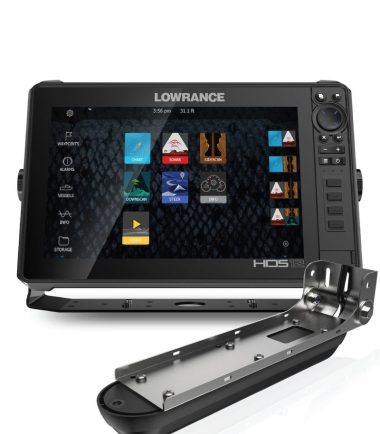

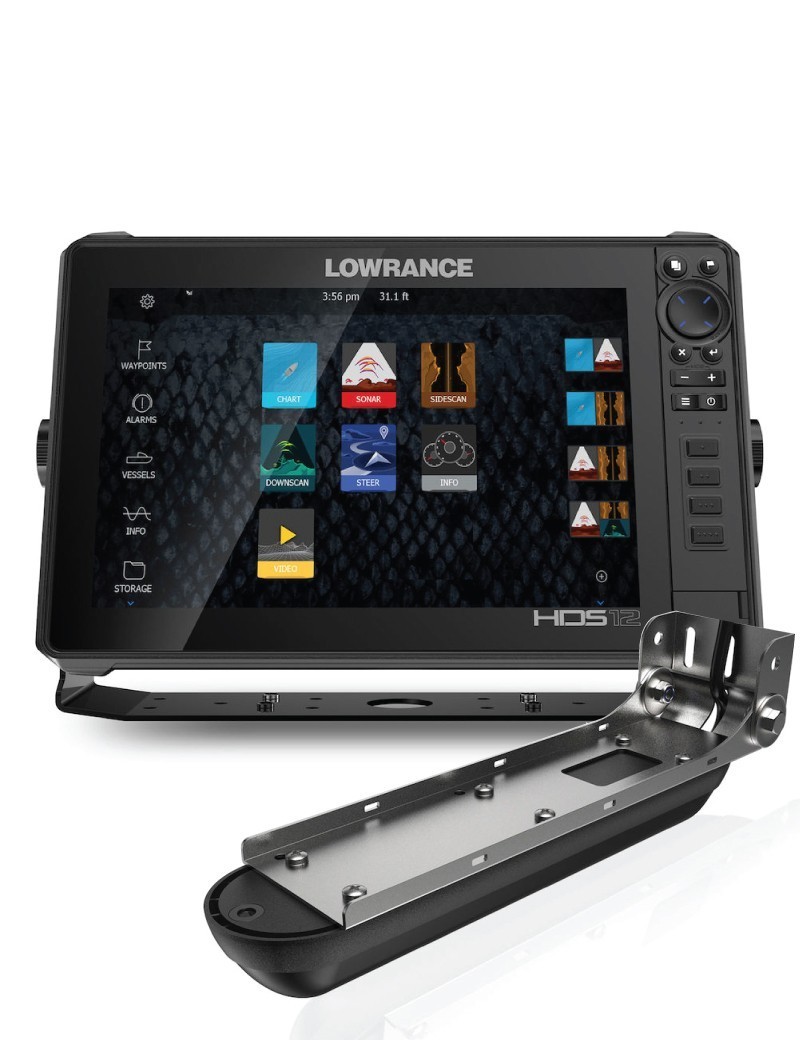

Lowrance HDS 12 Live Row 3 in 1

Specifiche

Cartografia inclusa

C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)

Luminosità dello schermo

>1200 Nits

Frequenza aggiornamento

10 Hz

GPS

10 Hz GPS/GLONASS WAAS/EGNOS/MSAS

Vibrazioni urti

100,000 cycles of 20 G

Tensione di alimentazione

12 v DC (10.8-17VDC)

Sicurezza bussola

7″

Risoluzione del display

1280 x 800

Canali del ricevitore GPS

16

Connettività NMEA 2000

1x Micro-C

Memoria scheda SD

2 micro SD cards up to 32GB

Porte Ethernet

2 x 100 Mbit, 6 max MFD’s on a network

Periodo di garanzia

2 Year 3 additional years ofupgrade optionsTotaling 5 years

Consumo energetico minimo

2.3A @ 13VDC with Full Backlight, Sonar on

Consumo energetico tipico

2.3A @ 13VDC withwith Full Backlight, Sonar on

Precisione della posizione

20m RMS

Consumo energetico massimo

3.6A @ 13VDC with Full Backlight, Sonar on

Waypoint, rotte, tracce

3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

Tempo prima riparazione

30s

Intervallo temperatura di stoccaggio

4°F to 140°F (-20°C to 60°C )

Compatibilità radar

4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)

Intervallo di temperature operative

5°F to 131°F (-15°C to 55°C )

Valore nominale del fusibile consigliato

5A

Peso

6.5lb (2.95kg)

Umidità

60°C, 95% relative humidity (RH) for 18 hours

Memoria interna

8.0 GB Internal

Angoli visuale

80° top/bottom, 80° left/right

AIS

AIS Chart and Radar overlay. Target vessel details.

Carte supportate

C-MAP (MAX N, MAX N )C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV Platinum )Insight (Pro and HD)Lowrance Regional Mapping Partners

Modalità di governo

CourseHeadingWaypointPower Steer

Schemi di virata manovra

CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S

Commutazione digitale

CzoneNaviop

Correzione

DGPS, WAAS

Conformità approvazioni

FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Tipo di montaggio

Gimbal BracketFront Dash Flush MountRear Dash Flush Mount

Bluetooth

Integrated Bluetooth 4.0 with support for Bluetooth Classic

Compatibilità sonar

Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D

Connettività Wi-Fi elemento

Internal 802.11b/g/n and Compatible with WiFi-1 Module

Livello d’impermeabilità

IPX7 with card door closed

Lingue

Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Connettività PC

None

Autopilota

Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway

Video

Output:NoInput:HDMIComposite video RCA – singlechannel via optional adaptor

Colore retroilluminazione

Pure White LED

PGN N2K

Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration

Meteo

SiriusXM via WM-3 (USA only)

Multimediale

SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products

Interfaccia

Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom /-ExitEnterMenuWaypointPower/Light4 – User Programmable Quick Access Keys

Sentenze NMEA 0183 supportate

TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.Fornito di Kit a incasso

Trasduttore 3 in 1 incluso
